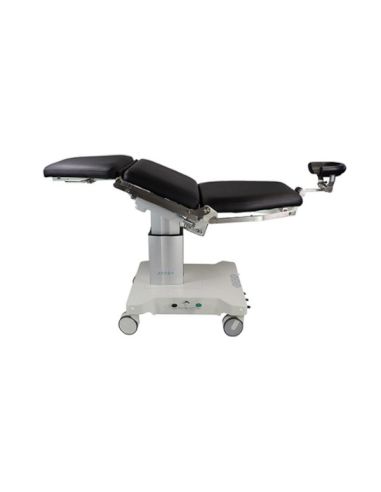

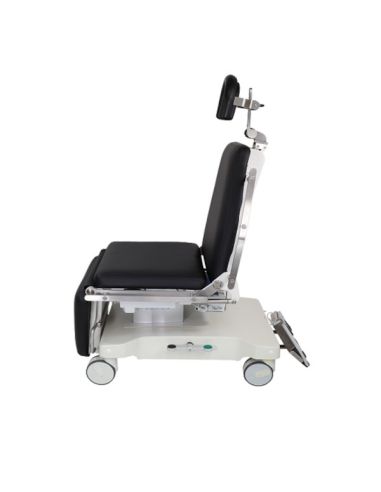

    Mobile surgical chair eye surgery SC5010ES triplan

    The mobile, electric SC 5010 ES surgical table is specifically designed for various applications
    including ophthalmology.
    Surgeons appreciate the unrestricted accessibility to the surgical area und ergonomic benefits
    of the surgical table for both, the medical staff and patients.

    The tables are offered in different heights for certain medical specialties.
    - ES ophthalmology 52 - 78 cm
    - HS head surgery 64 - 100 cm
    In ophthalmology cataract patients appreciate in particular:
    - Very low ingress level of 52 cm
    - The vertical leg rests
    - 50 mm electric lift of head rest when back rest horizontal
    Elderly, handicapped or wheelchair patients can get easily into and out of the surgical table.
    The high vertical lift from 63 cm to 100 cm supports both, seated down or standing up procedures.

    Features and Functions:
    - Chair height min 520 mm ? max 780 mm
    - Hand held control unit for 5 electric movements
    - 6 Memory positions
    - Electric actuated head rest
    - Leg supports
    - Trendelenburg position available
    - Integrated battery with Re charger unit totally mobile and line power independent.

    Technical Data:
    Length wheel base (backrest up) 760mm
    Width wheel base 580mm
    Width chair incl. attachment rails 700mm
    Width seat cushion 590mm
    Length seat cushion 450mm
    Length back rest (w/o head rest) 610mm
    Max. length bed, back rest horizontal 1850mm
    Max. patient weigh 200 kg
    Chair weight (depending on options) 114 kg
    Vertical lift

    SC 5010 ES (eye surgery)
    Height min. 520mm
    Vertical lift 260mm
    Max height 780mm

    Range back rest
    Horizontal to vertical 0-85?
    Shock position below horizontal -20?

    Wheel base
    3 Pos. Brake system
    All wheel pivoting
    All wheel locked
    1 wheel fixed for steering
    Wheel diameter 125mm

    Electrical data
    Battery 24 (2,9) Volt (Ah)
    Line power for re charger 100-240 Volt
    Recharging time 4h
    Nominal frequency 50 ? 60 Hz
    Nominal power 400mA
    Protection category IP 65

    Length mm
    760
    Width mm
    700
    Maximum admissible weight kg
    200
    Net weight kg
    114,00
    Gross weight kg
    180,00
    CE
    DM Classe 1
    101034
